Every Building Comes With "Stamped" Florida Engineered Drawings by an Independent Florida State Certified Engineer.
Engineered_Drawings/20x40x9_SAMPLE_3-12.gif
20x40x9 Ambassador 3:12 With Collar Tie
Engineered_Drawings/25x30x9_SAMPLE_3-12.gif

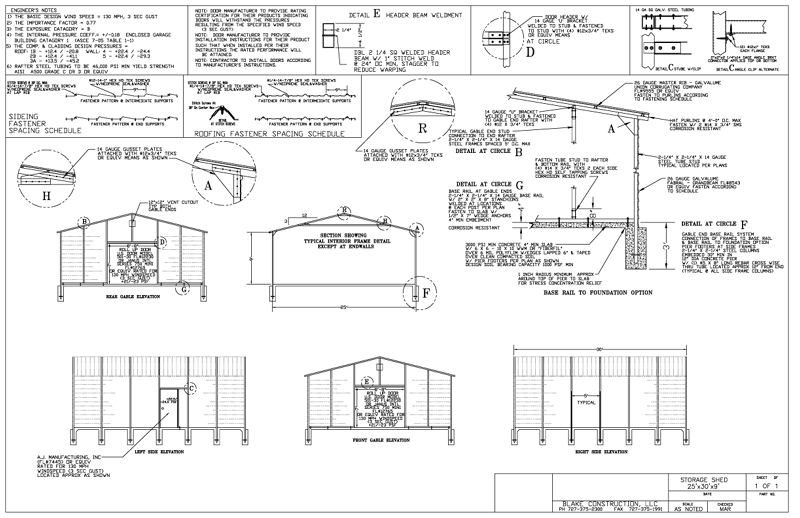

25x30x9 Ambassador 3:12 With Collar Tie
Engineered_Drawings/30x40x12_SAMPLE_3-12.gif

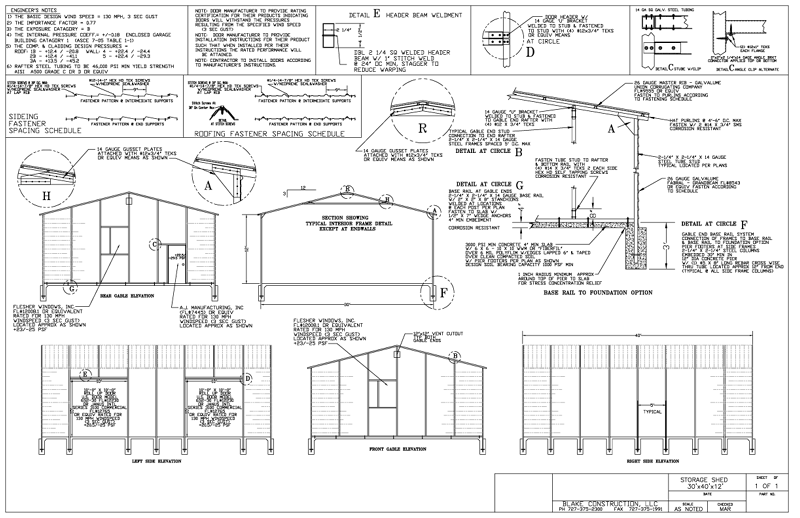

30x40x12 Ambassador 3:12 With Collar Tie
Engineered_Drawings/35x40x15_SAMPLE_3-12.gif

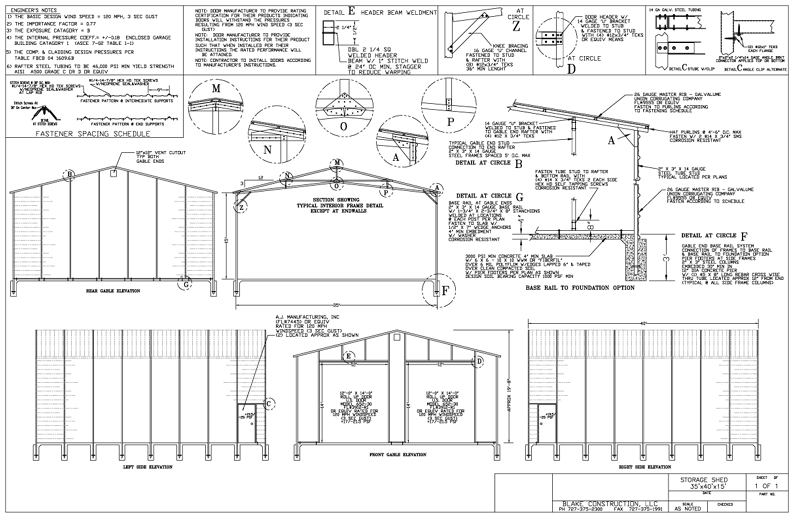

35x40x15 Ambassador 3:12 With Scissor Truss
Engineered_Drawings/40x50x9_SAMPLE_3-12_1.gif
Engineered_Drawings/40x50x9_SAMPLE_3-12_2.gif

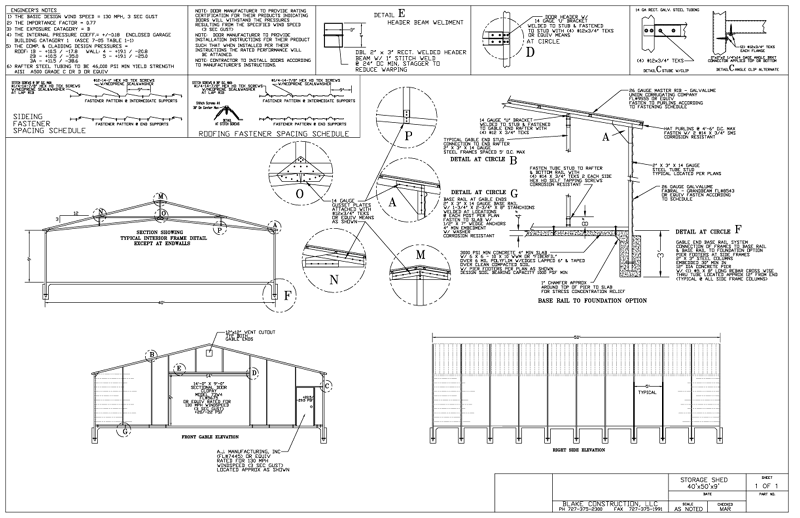

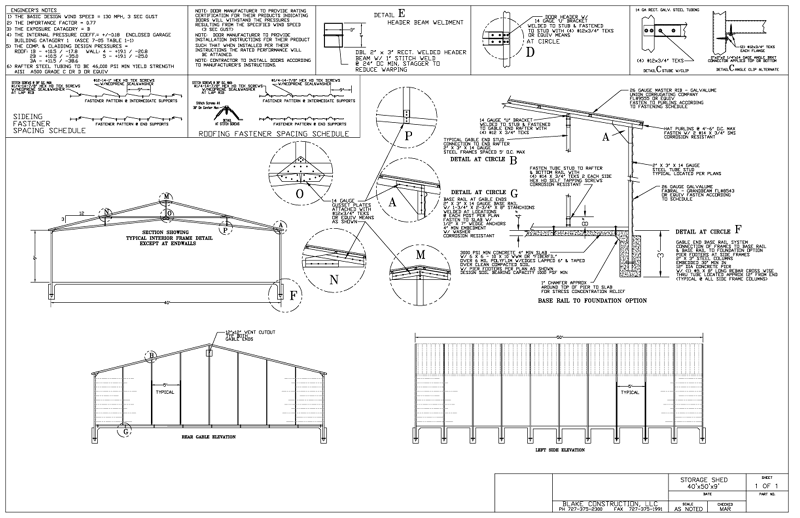

40x50x9 Ambassador 3:12 With Scissor Truss
